flexible printed circuit board multilayer
,electric rigid PCB board
,flexible membrane switch PCB
-
प्रतिरूप संख्या।एचसी-एफपीसी-011
-
सामग्रीजटिल
-
ज्वाला मंदकवी 2
-
यांत्रिक कठोरलचीला
-
प्रसंस्करण प्रौद्योगिकीइलेक्ट्रोलाइटिक पन्नी
-
मूलभूत सामग्रीअल्युमीनियम
-
इन्सुलेशन सामग्रीजैविक राल
-
तार प्रतिरोध≤ 1 ओम/सेमी
-
भुगतान की शर्तें25-100mA, 0-30V DC
-
कार्य वोल्टेज≤ 50 वी डीसी
-
इन्सुलेशन वोल्टेज≤ 100M ओम 250V DC
-
कामकाजी जीवन≤ एक मिलियन बार
-
काम का तापमान-40 सेंटीग्रेड-70 सेंटीग्रेड
-
कार्य आर्द्रता40 सेंटीग्रेड-≤ 98%आरएच
-
बुनियादी सामग्री दबाव1500V डीसी
-
न्यूनतम आदेश मात्रा100
Electric Flexible Printed PCB Rigid Board Multilayer Circuit Board
Electric Flexible Printed PCB Rigid Board Multilayer Circuit Board
We are a professional manufacturing company with comprehensive production systems and stable technical personnel. We provide complete one-stop service solutions for flexible printed circuit boards.
Layer Structure
- Overlay
- Overlay adhesive
- Dome retainer
- Metal dome
- Spacer adhesive
- Circuit
- Rear adhesive (customizable)
Production Capabilities
- Screen Print Department
- IR Tunnel
- Thickness Tester
- IR Oven
- Laser Cutting Machine
- Punching Department
- Emboss Key Section
- Assemble
- Electric Testing
- OQC Department
- Virtual Aspect Testing
- Punch Machine Department
- PU Coating Section
Technical Specifications
| Wire Resistance | ≤ 1 Ohm/cm |
| Current Rating | 25-100mA, 0-30V DC |
| Work Voltage | ≤ 50V DC |
| Insulation Voltage | ≤ 100M Ohm 250V DC |
| Working Life | ≤ One Million Cycles |
| Work Temperature | -40°C to 70°C |
| Work Humidity | 40°C ≤ 98%RH |
| Basic Material Pressurization | 1500V DC |
Detailed Performance Parameters
| Insulation Resistance | <100MΩ, 250V DC |
| Contact Resistance | <1Ω/cm |
| Operating Voltage | ≤ 50V DC |
| Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million cycles |
| Operating Humidity | 40°C <98%RH |
| Spring Time | ≤ 5ms |
| Substrate Voltage | 2000V DC |
| Tail Flexibility | Any angle within 180 degrees |
| Switch Travel | Flat Type: 0.05-0.3mm, Tactile Type: 0.3-1.5mm |

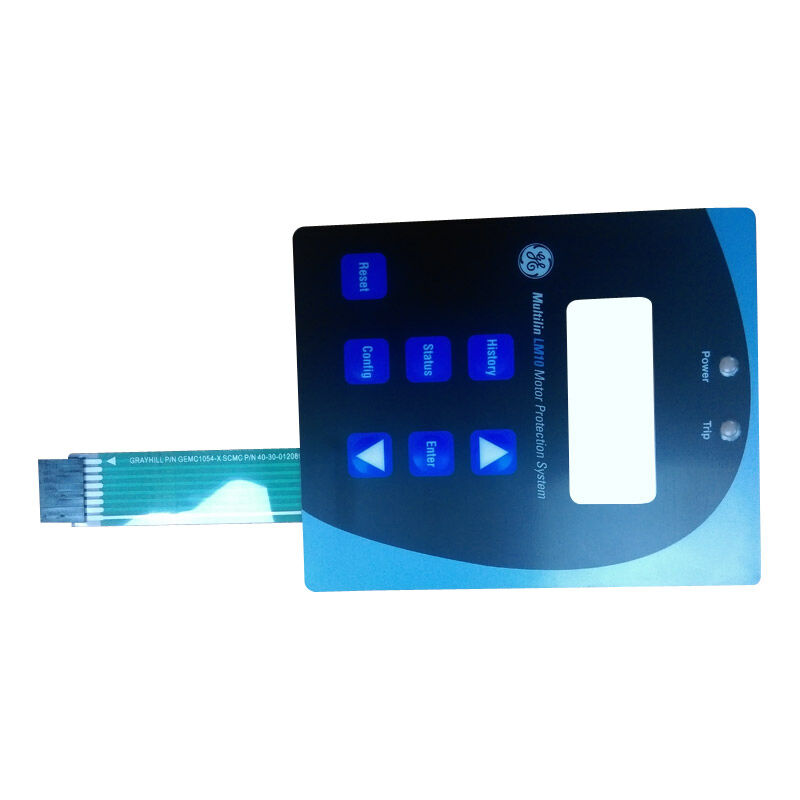

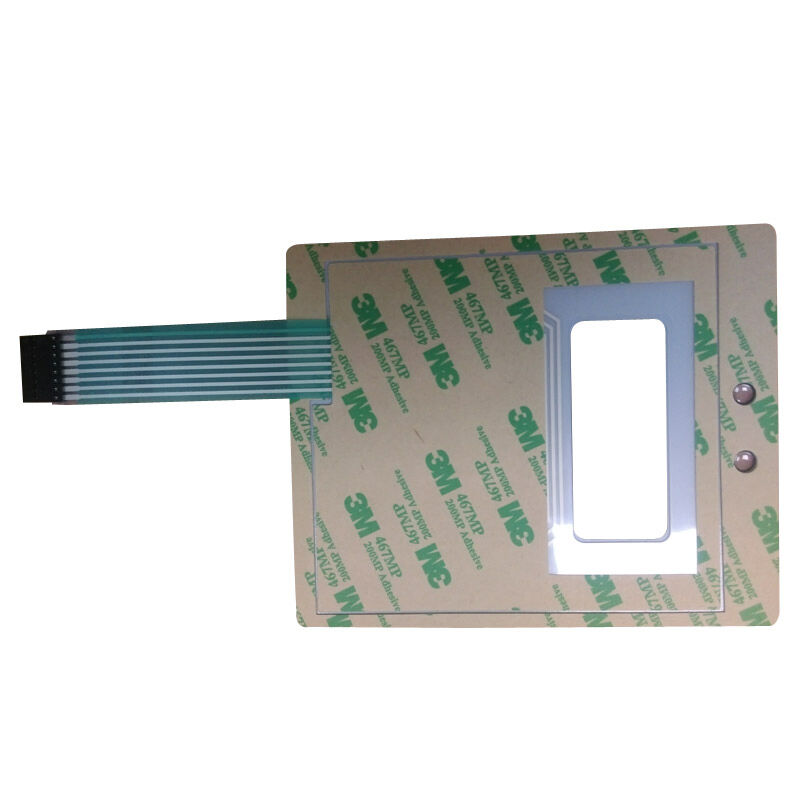

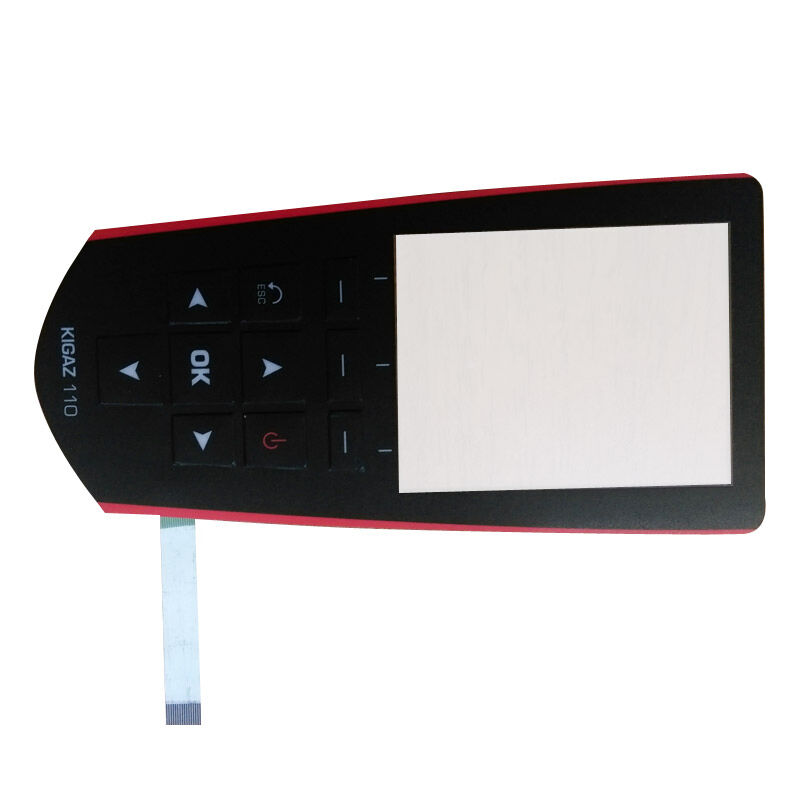

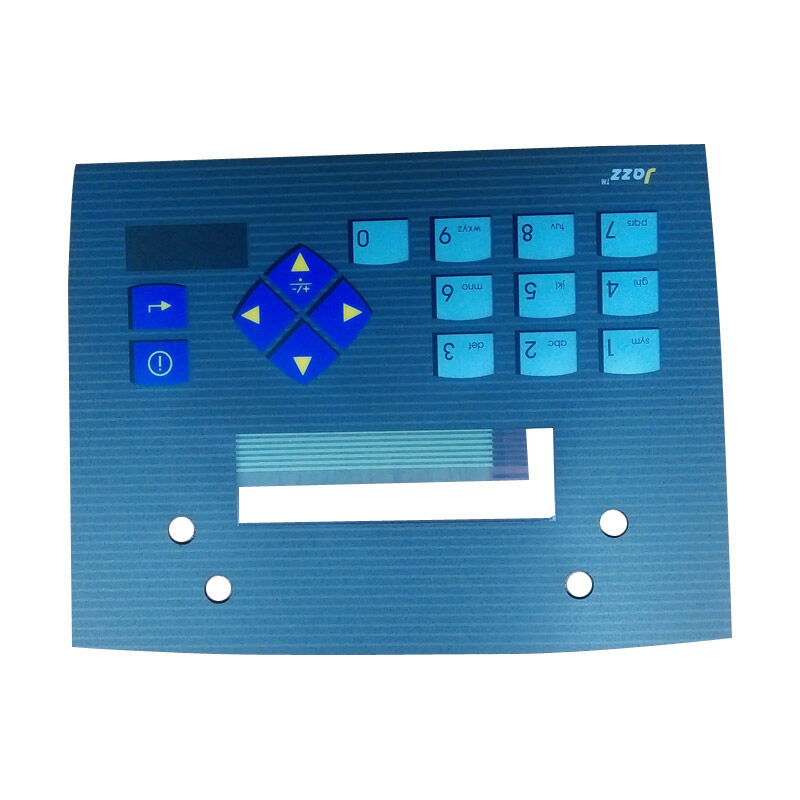

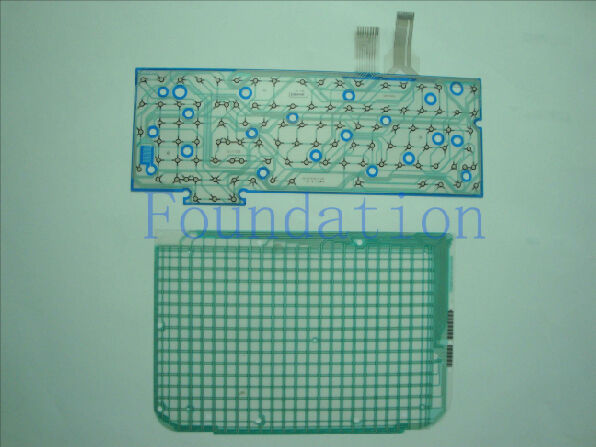

Product Images
Please contact us for more detailed information and technical specifications. Let's discuss your specific requirements!
